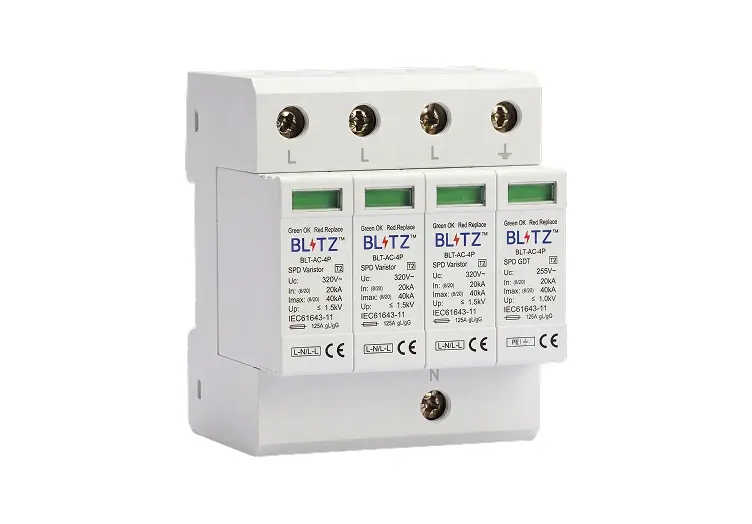

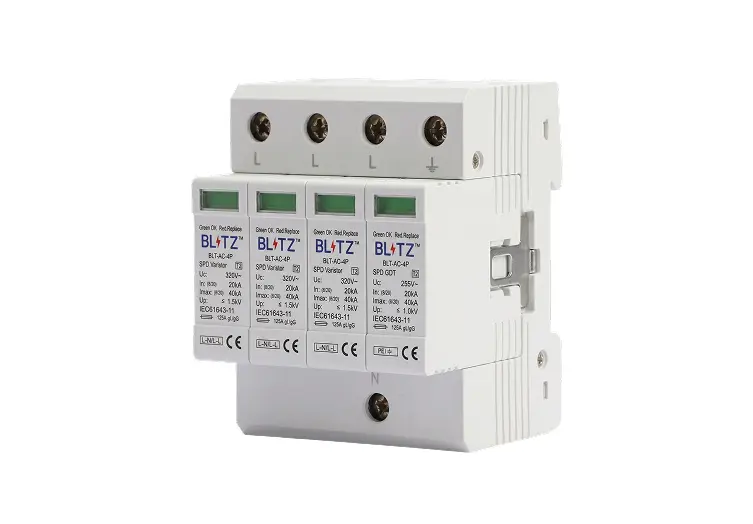

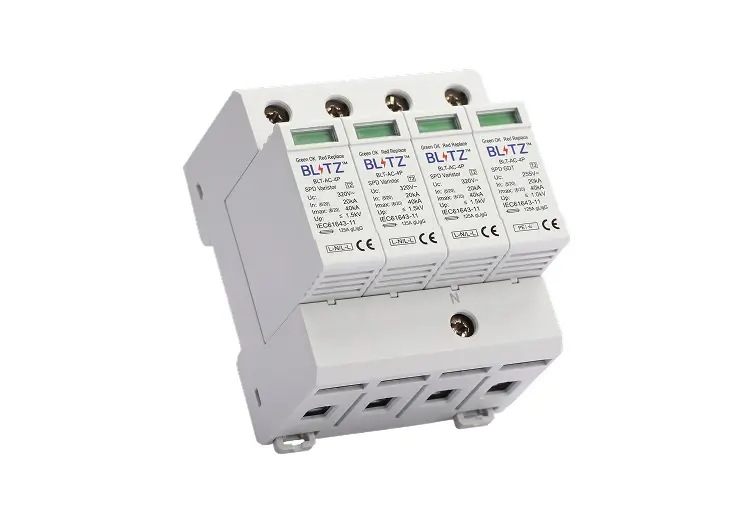

AC SPD 3 PHASE - 4 POLE
BLT-AC-4P
The Blitz Type 2 three-phase surge protection device is built for commercial, industrial and critical load applications where robust AC protection across all three phases is non-negotiable. With a modular DIN rail mount design and fast-acting response, it delivers dependable defence against lightning strikes and voltage spikes across 230/400V AC three-phase systems.
- 40kA nominal discharge capacity per phase
- Voltage protection level up to 1.5kV
- Supports 230/400V AC three-phase systems
- Response time as fast as 25ns
- Quick installation with 35mm D
IEC Certified
Fast Delivery
Made in India
Warranty Support
Technical Specifications
Each product is designed to international standards with rigorous quality control at every stage.
| Parameters | Specifications |
|---|---|
| SPD Classification (EN61643-11) | Type 2 |
| SPD Classification (IEC61643-11) | Class II |
| Nominal Voltage (Un) | 230/415V AC |
| Max. Continuous Operating Voltage (Uc) | 320V AC |
| Max. Continuous Operating Voltage N-PE (Uc) | 255V AC |
| Nominal Discharge Current (In) | 20kA |
| Max. Discharge Current (Imax) | 40kA |
| Parameters | Specifications |
|---|---|
| Voltage Protection Level (Up) | ≤1.5kV |
| Voltage Protection Level N-PE (Up) | ≤1.0kV |
| Response Time (ta) | ≤25ns |
| Response Time N-PE (ta) | ≤100ns |
| Operating Temperature Range (Tu) | -40°C to +70°C |
| Operating State / Fault Indication | Green / Red |
| Cross Section Area (Min) | 4mm² |
| Parameters | Specifications |
|---|---|
| Cross Section Area (Max) | 35mm² |
| Mounting | 35mm DIN Rail |
| Enclosure Material | Thermoplastic UL94-V0 |
| Remote Signalling Contact | Optional |
| Degree of Protection | IP20 |
