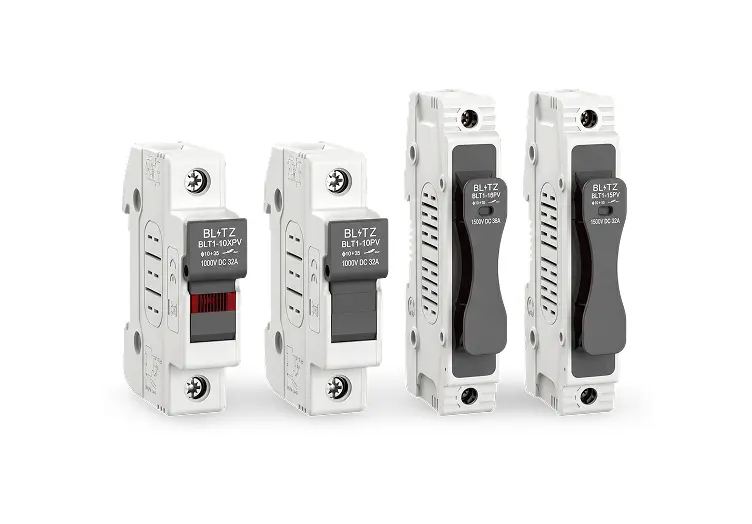

PV SOLAR FUSE TERMINAL
BZ-HRC100
The Blitz PV Solar Fuse Terminal is a cylindrical fuse terminal solution to protect photovoltaic modules and DC circuits from overload and short-circuit faults. Available in 1000V DC and 1500V DC variants, this solar DC fuse terminal delivers a high breaking capacity of 50kA and is ideally suited for solar combiner boxes, inverters, and string protection setups where maximum system safety and reliability are non-negotiable.
- Available in 1000V DC and 1500V DC ratings
- Rated current options of 20A, 25A and 30A for 1000V and 35A and 50A for 1500V
- Cylindrical PV-type solar panel fuse with 50kA breaking capacity
- Tested to IEC 60269-6 Class gPV standards
- Single-pole configuration with IP20 degree of protection
IEC Certified
Fast Delivery
Made in India
Warranty Support
Technical Specifications
Each product is designed to international standards with rigorous quality control at every stage.
| Parameters | Specifications |
|---|---|
| Rated Voltage | 1000V DC / 1500V DC |
| Rated Current (In) | 32A / 35A / 50A |
| Pole Description | 1P |
| Degree of Protection | IP20 |
| Rated Cross Section | 1.0 to 25.0mm² |
| Rated Torque | 2 Nm |
| Dimensions (W x H x P) | 78 x 68 x 18mm / 127 x 64.8 x 21.7mm |
| Parameters | Specifications |
|---|---|
| Making Label | KN 5.5 |
| Mounting Channel | CHK / CHKS |
| Standard Box Packing | 20 Nos. |
